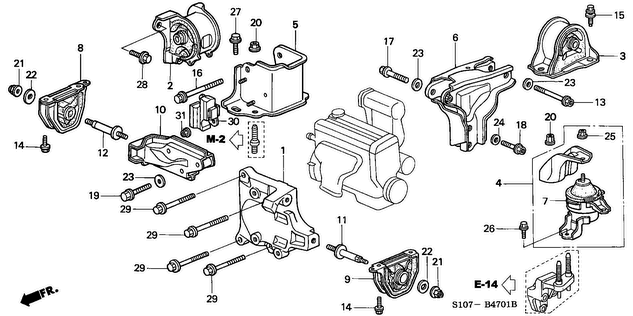

SUPPORTI MOTORE |
|
|
|
| |
|
|
|
№ |
Код запчасти |
Название/Примечание |
Кол-во |
|
1 |
38930-P3F-000 |
BRACKET, COMPRESSOR |
001 |
|
2 |
50805-S04-000 |
RUBBER, TRANSMISSION MOUNTING |
001 |
|
3 |
50810-ST7-000 |
INSULATOR, RR. ENGINE MOUNTING RUBBER (MT) |
001 |
|
4 |
50820-S10-005 |
RUBBER ASSY., ENGINE SIDE MOUNTING |
001 |
|
5 |
50825-S10-J00 |
BRACKET, TRANSMISSION MOUNTING (MT) |
001 |
|
5 |
50825-S10-J01 |
BRACKET, TRANSMISSION MOUNTING (MT) |
001 |
|
6 |
50827-S10-J00 |
BRACKET, RR. ENGINE MOUNTING (MT) |
001 |
|
7 |
50828-S77-003 |
RUBBER, ENGINE SIDE MOUNTING |
001 |
|
8 |
50841-ST0-N10 |
RUBBER, R. FR. STOPPER INSULATOR (MT) |
001 |
|
9 |
50842-ST0-N10 |
RUBBER, L. FR. STOPPER INSULATOR (MT) |
001 |
|
10 |
50843-S10-J00 |
BRACKET, R. FR. STOPPER (MT) |
001 |
|
11 |
90131-ST7-000 |
BOLT, L. FR. STOPPER |
001 |
|
12 |
90133-S04-000 |
BOLT, R. FR. STOPPER |
001 |
|
13 |
90165-SM4-020 |
BOLT, FLANGE, 12X101 |
001 |
|
14 |
90166-SR3-000 |
BOLT, FLANGE, 10X30 |
004 |
|
15 |
90176-S10-000 |
BOLT-WASHER, 10X49.5 |
003 |
|
16 |
90183-SR3-000 |
BOLT, FLANGE, 12X100 |
001 |
|
17 |
90186-SL4-000 |
BOLT, FLANGE, 12X67 |
001 |
|
18 |
90188-SR3-010 |
BOLT, FLANGE, 14X67 |
002 |
|
19 |
90190-SR3-000 |
BOLT, FLANGE, 12X64 |
003 |
|
20 |
90371-SR3-000 |
NUT, FLANGE, 12MM |
004 |
|
21 |
90372-SR3-003 |
NUT, FLANGE, 12MM |
002 |
|
22 |
90504-SR3-010 |
WASHER, FR. STOPPER |
002 |
|
23 |
90505-SB2-000 |
WASHER, SIDE MOUNTING |
005 |
|
24 |
90505-SR3-000 |
WASHER, RR. BRACKET, 14MM |
002 |
|
25 |
94050-120-80 |
NUT, FLANGE, 12MM |
001 |
|
26 |
95701-100-2008 |
BOLT, FLANGE, 10X20 |
003 |
|
27 |
95701-120-2008 |
BOLT, FLANGE, 12X20 |
001 |
|
28 |
95701-120-2508 |
BOLT, FLANGE, 12X25 |
003 |
|
29 |
95801-100-4508 |
BOLT, FLANGE, 10X45 |
004 |
|
| |
|
| |
|
| |
|
| |
|
|
